Thông tin chi tiết sản phẩm
Place of Origin: GuangDong, China
Hàng hiệu: LINK-PP
Chứng nhận: RoHS,FCC

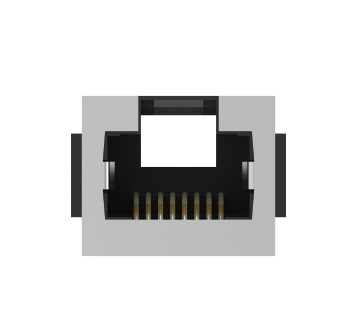

Model Number: 100616-2
Điều khoản thanh toán & vận chuyển
Minimum Order Quantity: 10pcs
Giá bán: $0.5.-$0.9
Packaging Details: Blister Pack
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 6000000/Month
Series: |
RJ45 8P8C Modular Connector |
Number of Ports: |
1X1 |
Mounting Style: |
Through Hole RJ45 |
Performance Category: |
Cat 3 |
Tab Direction: |
Latch Down |
Shielding: |
YES |
LED: |
Without |
Operating Temperature: |
-40°C ~ 70°C |
Series: |
RJ45 8P8C Modular Connector |
Number of Ports: |
1X1 |
Mounting Style: |
Through Hole RJ45 |
Performance Category: |
Cat 3 |
Tab Direction: |
Latch Down |
Shielding: |
YES |
LED: |
Without |
Operating Temperature: |
-40°C ~ 70°C |
The JXT4-1128HL Integrated Connector Module (ICM) is designed to Support 10GBASE-T Transceivers. Here are the features and benefits of this 8P8C Modular jack:
1. High-Performance Connectivity:
The JXT4-1128HL provides high-speed 10GBASE-T Ethernet connectivity.
2. Compliance and Standards:
This module complies with IEEE 802.3 standards to ensure compatibility with various networking equipment. The JXT4-1128HL dimensions comply with FCC dimension requirements. It is also RoHS-compliant and adheres to environmental regulations.
3. Ruggedized:
The operating range is -40°C to +85°C and withstands harsh environments. Storage temperature range is -50°C to 125°C, suitable for industrial and outdoor use.
4. Low-Profile Design:
Its low-profile and compact package is suitable for PCI Express applications. Provides space-saving solutions for high-speed networks.
5. Fine-Tuned Magnetics:
Meet the specific requirements of each PHY vendor to ensure optimal performance.
6. Halogen Free:
JXT4-1128HL is environmentally friendly and Halogen-free.
7. Durable Finish:
All parts feature a tinned matte finish for enhanced durability and electrical performance.
| Items | 10GBase-T 8P8C Modular jack Through Hole with LEDs |
|---|---|
| Connection Style | SIDE ENTRY, LATCH-DOWN |
| Part Number | JXT4-1128HL |
| Number of Ports | 1X1 |
| Data Rate | 10GBASE-T |
| Mounting | THT |
| Mounting Angle | Right Angle |
| Number Of Positions/Contacts | 8P8C |
| PoE | NONE |
| LED L / R Color | Green, Yellow / Green |
| Termination Style | Solder Pin |
| Shielding | Shielded, EMI Fingers |
| Operation Temperature | -40°C to +85°C |
| Feature | Low profile |
| Suit for | PCI Express |
| Use | Industrial and Outdoor use |
| Dimension | 28.57*17.53*11.92mm |
| Sample | Available |
Magnetic RJ45 connectors are commonly used in networking equipment to connect Ethernet cables. It is divided into shielded and non-shielded types according to whether it has a shielding function. The main difference is whether electromagnetic interference can be reduced to improve signal quality.
Shielded types have metal enclosures or EMI Tabs that surround the internal components. This design can effectively reduce the impact of external electromagnetic interference on internal signals. Unshielded connectors lack this external protection.
Shielded RJ45 connectors generally perform better in environments with high electromagnetic interference. EMI Suppression is more suitable for industrial environments.
Generally speaking, shielded connectors are more expensive to manufacture than unshielded connectors. For applications with less stringent signal quality requirements, the unshielded type may be a more economical choice.
Shielded connectors are commonly used in industrial automation, medical equipment, and high-speed networks. The unshielded type is suitable for home networks, office environments, or other low electromagnetic interference environments.
In summary, the choice between shielded and unshielded RJ45 connectors depends on your application. If the network environment is prone to electromagnetic interference, a shielded type may be better. If your device is less sensitive to interference, the unshielded type will also work.
