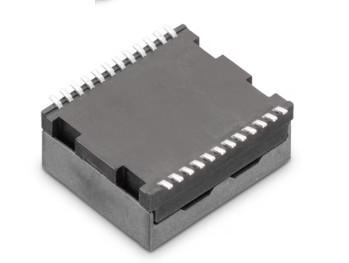

749050017 749050018 LAN Transformer For 10G HDBaseT Applications

Thông tin chi tiết sản phẩm

Place of Origin: GuangDong, China

Hàng hiệu: LINK-PP

Chứng nhận: RoHS, REACH

Model Number: 749050017 / 749050018

Điều khoản thanh toán & vận chuyển

Minimum Order Quantity: 100pcs

Giá bán: $2.2

chi tiết đóng gói: Số lượng bao bì: 20 Phương pháp bao bì: hộp & khay, khay

Delivery Time: Ships within 15 days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 6000K-PCS/Month

Nhận giá tốt nhất
Làm nổi bật:

749050017

,

749050018

,

10G LAN Transformer

Transformer Type:
High-speed LAN Transformer
Data rate:
10G Base-T
PoE:
non-PoE
Operating Temperature:
-40°C To +85°C [ -40 – 185 °F ]
Improved CMRR:
NO
Mount:
SMT
Transformer Type:
High-speed LAN Transformer
Data rate:
10G Base-T
PoE:
non-PoE
Operating Temperature:
-40°C To +85°C [ -40 – 185 °F ]
Improved CMRR:
NO
Mount:
SMT
749050017 749050018 LAN Transformer For 10G HDBaseT Applications
Specifications of 749050017 / 749050018 10G LAN Transformer: Part Number 749050017 749050018 Product Series 10G LAN Transformer 10G LAN Transformer Status Active Active Data Rate 10G Base-T 10G Base-T Number of Ports 1 1 PoE Support Non-PoE Non-PoE Turns Ratio 1:1 ±2% @ 100kHz / 100mV 1:1 ±2% @ 100kHz / 100mV Inductance (OCL) 120 µH @ 100kHz / 100mV, 8mA DC Bias 120 µH @ 100kHz / 100mV, 8mA DC Bias Insertion Loss(IL) ≤ -3.0 dB @ 100 kHz – 1 MHz ≤ -3.0 dB @ 100 kHz – 1 MHz
