Thông tin chi tiết sản phẩm
Nguồn gốc: Quảng Đông, Trung Quốc
Hàng hiệu: LINK-PP
Chứng nhận: UL, Reach, RoHs, ISO19001, ISO14001
Số mô hình: HXB5G602NL
Điều khoản thanh toán & vận chuyển
Số lượng đặt hàng tối thiểu: 50pcs
Giá bán: $0.46-$2.2
chi tiết đóng gói: 50 cái/khay, 1200 cái/thùng
Thời gian giao hàng: Khoảng 3-5 ngày
Điều khoản thanh toán: TT, NET30/60/90 ngày
Khả năng cung cấp: 5500K-PCS/tháng
Loại sản phẩm: |
Máy biến áp cấp nguồn qua Ethernet |
Số lượng cổng: |
Cổng bốn |
Tốc độ: |
Cơ sở 5G-T |
Góc gắn PCB: |
Lối vào bên |
Ứng-Lan: |
Ethernet (PoE+) |
Nhiệt độ hoạt động: |
-40oC-+85oC |
Biến tỷ lệ: |
1ct: 1ct |
Xếp hạng sức mạnh: |
90 w |
Điện áp cô lập: |
1.5 KVrms |
Mô -đun: |
HXB5G602NL |
Loại sản phẩm: |
Máy biến áp cấp nguồn qua Ethernet |
Số lượng cổng: |
Cổng bốn |
Tốc độ: |
Cơ sở 5G-T |
Góc gắn PCB: |
Lối vào bên |
Ứng-Lan: |
Ethernet (PoE+) |
Nhiệt độ hoạt động: |
-40oC-+85oC |
Biến tỷ lệ: |
1ct: 1ct |
Xếp hạng sức mạnh: |
90 w |
Điện áp cô lập: |
1.5 KVrms |
Mô -đun: |
HXB5G602NL |

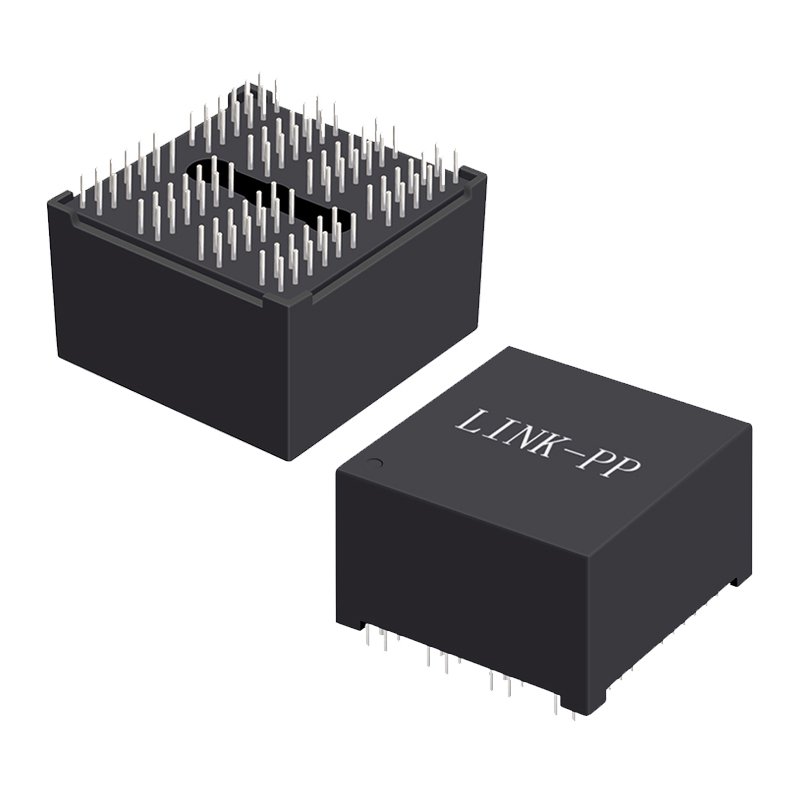

The HXB5G602NL is a high-performance LAN transformer designed to support 5G Base-T Ethernet applications. Featuring a QUAD-channel architecture, it delivers reliable multi-port connectivity for next-generation networking equipment. With a 1:1 turns ratio, this PoE Magnetics ensures excellent signal integrity and low insertion loss.
Engineered with an extended operating temperature range (-40°C to +85°C), the HXB5G602NL provides robust performance in industrial and telecom environments. It supports 4-Pair Power over Ethernet (4PPoE) up to 90W, enabling both data and high-power delivery through a single Ethernet connection.
The transformer adopts a 96-pin through-hole design (THD) for secure mounting and mechanical stability in high-density PCB layouts. In addition, the product is lead-free (NPB compliant) and supplied in tube packaging.
With its combination of modular design, advanced PoE support, and rugged construction, the HXB5G602NL is ideally suited for 5G small cells, high-power PoE switches, IoT gateways, and enterprise networking systems.
| Name | PoE LAN Magnetics |
|---|---|
| Application | 5G Base-T backward compatible with 1/2.5G Base-T |
| Mounting Type | Through Hole |
| Number of Pins | 96 |
| Dimensions (L x W x H) | 33.50mm x 29.00mm x 16.80mm (1.319" x 1.142" x 0.661") |
| Operating Temperature Range | -40°C to +85°C |
| Open Circuit Inductance (OCL) | 180 µH (Min) @ 100KHz, 0.1V With 8mA DC Bias |
| Turns Ratio | 1CT : 1CT ± 2% |
| Insertion Loss | -1.0 dB (Max) @ 1 - 100 MHz -2.0 dB (Max) @ 100 - 250 MHz |
| Return Loss | -16 dB (Min) @ 1 - 40 MHz -(16-10*log10(f/40)) dB (Min) @ 40 < f ≤ 250 MHz |
| Crosstalk (Port-to-Port) | -40 dB (Min) @ 1 - 100 MHz |
| Common Mode Rejection Ratio (CMRR) | -30 dB (Min) @ 1 - 100 MHz |
| Hipot (Isolation Voltage) | 1500 Vrms 60 seconds |
| PoE Current Capability | 1000 mA per pair Supports 4-Pair PoE (4PPoE) up to 90W |
| Soldering Process | Wave solder capable up to 260°C / 5 seconds |
|
Certifications |
IEEE 802.3bz,IEEE 802.3bt,RoHS,IEC-62368-1 |
| Packaging | Tube (TU) |
