Thông tin chi tiết sản phẩm
Nguồn gốc: TRUNG QUỐC
Hàng hiệu: LINK-PP
Chứng nhận: UL,ROHS,Reach,ISO
Số mô hình: HFJV1-1G46RL
Điều khoản thanh toán & vận chuyển
Số lượng đặt hàng tối thiểu: 50/500/1000
Giá bán: $0.09-$3.85
chi tiết đóng gói: 50 cái/khay, 1200 cái/thùng
Thời gian giao hàng: trong kho hàng ngày hôm nay
Điều khoản thanh toán: TT, NET30/60/90 ngày
Khả năng cung cấp: 4200K-chiếc/tháng
Mã sản phẩm: |
HFJV1-1G46RL / HFJV1-E1G46RL |
Tương đương: |
LPJD0718DNL |
Hi-Pot: |
1500Vrms |
OCL: |
350uH tối thiểu ở mức 8mA DC |
Ổ đĩa PHY: |
Điện áp |
Kiểu: |
Đầu nối RJ45 dọc với 1000 từ tính |
Mã sản phẩm: |
HFJV1-1G46RL / HFJV1-E1G46RL |
Tương đương: |
LPJD0718DNL |
Hi-Pot: |
1500Vrms |
OCL: |
350uH tối thiểu ở mức 8mA DC |
Ổ đĩa PHY: |
Điện áp |
Kiểu: |
Đầu nối RJ45 dọc với 1000 từ tính |

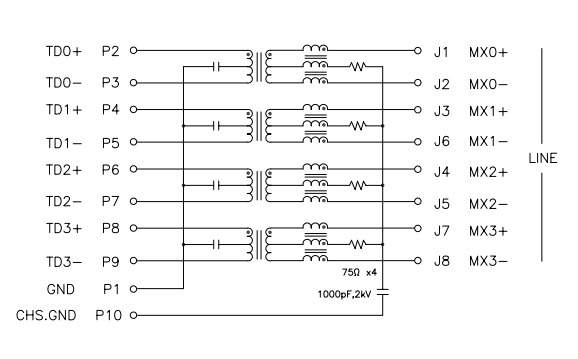

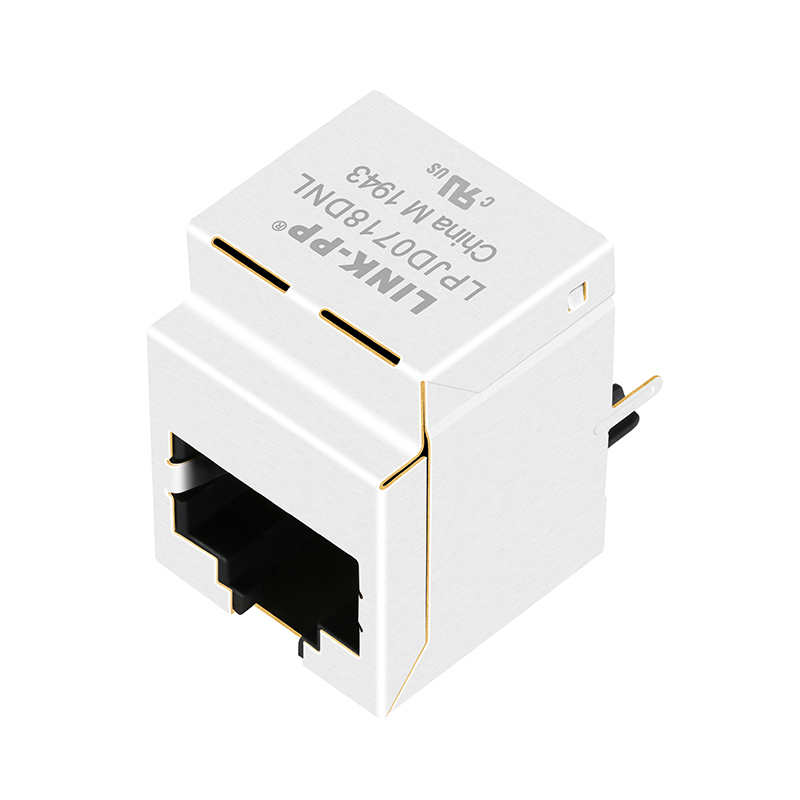

1x1 vertical shielded Gigabit RJ45 MagJack with integrated transformers, IEEE-802.3 compliant, available in standard (HFJV1-1G46RL) and industrial-temperature versions (HFJV1-E1G46RL) for networking and industrial applications.
1-port RJ45 Connector with integrated magnetics
Supports 10/100/1000Base-T Ethernet
Without LEDs
Compatible with PoE / PoE+ (IEEE 802.3af/at)
Low cross-talk & superior EMI suppression
TOP-Entry Mounting
RoHS-compliant, Halogen-free options available
Shielded housing for noise immunity
| Parameter | Specification |
|---|---|
| Ethernet Speed | 10/100/1000 Mbps |
| Transformer Ratio | 1:1 (Gigabit) |
| Compliant | IEEE 802.3 compliant |
| HI-POT | 1500VAC, 60s |
| Insulation Resistance | ≥ 500MΩ |
| Contact Resistance | ≤ 40mΩ |
| Insertion/Withdrawal Cycles | 750+ cycles |
| Parameter | HFJV1-1G46RL / HFJV1-E1G46RL |
|---|---|
| Connector Type | RJ45 Magnetic Jack |
| Port Count | 1 port |
| LED | No LEDs |
| Orientation | Top-Entry |
| Shield | Yes |
| Operating Temperature | 0°C to +70°C / -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 0–95% RH |
