L9-FC553101-60PPC 155Mbps 1×9 FC Transceiver Tx1550nm/Rx1310nm


L9-FC553101-60PPC 1×9 FC optical transceiver — 155 Mbps, Tx 1550 nm / Rx 1310 nm, up to 60 km (single-mode), DC 5.5–26V input, TTL interface. Ruggedized for UAV air/ground links, industrial serial converters and SDH/STM-1 applications. Datasheet & ordering info inside.


155Mbps 1×9 Transceiver Product Overview

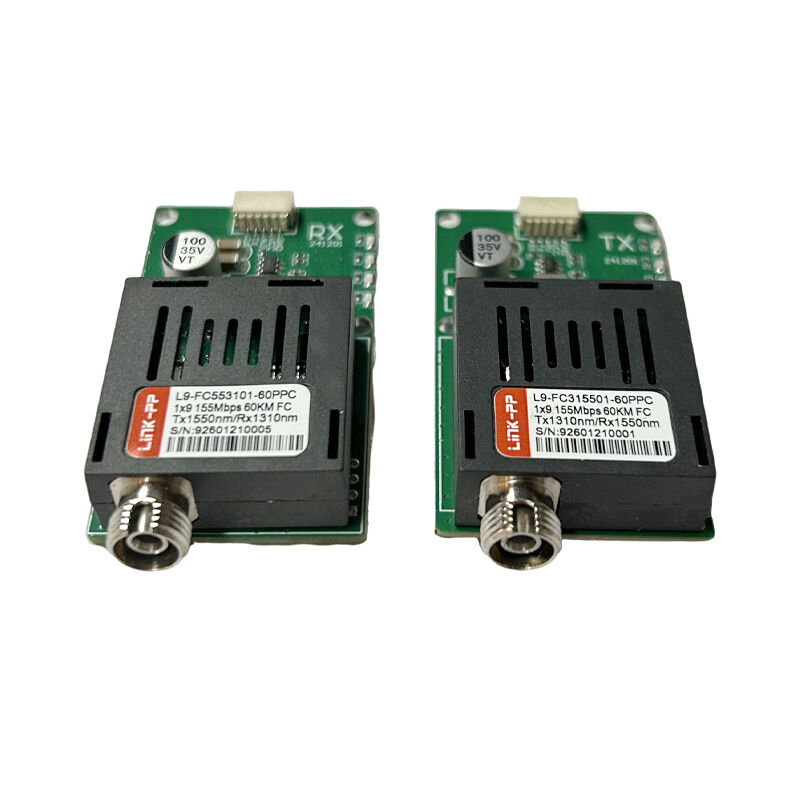

L9-FC553101-60PPC is a 1×9 form-factor, single-fiber bi-directional optical transceiver designed for 155 Mbps serial optical communication over long distances.

The module uses an FC optical connector, operates with Tx 1550 nm / Rx 1310 nm, and supports transmission distances of up to 60 km over single-mode fiber.

With a wide DC input voltage range of 5.5–26 V and a TTL electrical interface, this transceiver is well suited for UAV air-to-ground optical links, TTL-to-fiber converters, industrial telemetry systems, and legacy STM-1 / OC-3 communication equipment.

Key Features

• 1×9 industry-standard optical transceiver module
• Data rate: 155 Mbps
• Single-fiber bi-directional transmission
• Optical wavelengths: Tx 1550 nm / Rx 1310 nm
• Transmission distance: up to 60 km (80 km option available)
• Optical connector: FC
• Electrical interface: TTL logic level
• Wide input voltage: DC 5.5 V to 26 V
• Low latency, high EMI immunity
• RoHS compliant
• Optional industrial temperature grade for harsh environments

Technical Specifications of L9-FC553101-60PPC 60km FC Fiber Transceiver

1. General Characteristics

2. Optical Parameters

3. Electrical Parameters

4. Environmental Conditions

5. Compliance

Mechanical Information

• Package: Through-hole 1×9 module
• Mounting: PCB solder pins
• Mechanical Dimensions: Industry-standard 1×9 footprint
• Orientation: Fixed pin layout for easy PCB integration

(Mechanical drawing and PCB footprint available upon request.)

60km 1x9 Transceiver Applications

• UAV air-to-ground optical communication systems
• TTL to fiber optical converters
• UAV optical data links and FPV systems
• Industrial control and telemetry
• Serial communication over long-distance fiber
• STM-1 / OC-3 legacy telecom systems

Compatibility Notes

• Designed for single-mode fiber only
• Ensure correct wavelength pairing (Tx 1550 nm / Rx 1310 nm) on the opposite end
• Compatible with standard TTL logic levels
• FC connector must match mating fiber cable type

L9-FC553101-60PPC Ordering Information

• Part Number: L9-FC553101-60PPC
• Standard Reach: 60 km
• Optional Reach: 80 km
• Connector: FC
• Temperature Grade: Commercial or Industrial (specify when ordering)

For datasheets, samples, pricing, and technical support, please Contact US now.

FAQ about L9-FC553101-60PPC TTL-to-Fiber Module

Q1: What is the L9-FC553101-60PPC used for?

A: It is used for long-distance 155 Mbps TTL-to-fiber optical transmission, commonly in UAV communication, industrial telemetry, and legacy telecom systems.

Q2: Does this module support UAV power systems?

A: Yes. The module supports a wide input voltage range of DC 5.5–26 V, suitable for vehicle and UAV platforms.

Q3: Is an 80 km version available?

A: Yes. An extended-reach 80 km version is available upon request.

Q2: What fiber and connector does it use?

A: Single-mode fiber (9/125 µm) with an FC optical connector.
