Thông tin chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: LINK-PP
Chứng nhận: SGS, UL,CE, ISO9001:2008,REACH
Số mô hình: LPJ46204AENL
Tài liệu: LPJ46204AENL.pdf
Điều khoản thanh toán & vận chuyển
Số lượng đặt hàng tối thiểu: 50/500/1000/25K
Giá bán: $1.1-$4.5
chi tiết đóng gói: Khay
Thời gian giao hàng: trong kho hàng ngày hôm nay
Điều khoản thanh toán: TT, NET30/60/90 ngày
Khả năng cung cấp: 208K/Tháng
Mã sản phẩm: |
LPJ46204AENL |
Loại kết nối: |
Giắc cắm đa cổng RJ45 |
Thương hiệu tương thích: |
Xung |
Số lượng cổng: |
1x4 |
Chốt cửa: |
Xuống |
Tốc độ dữ liệu: |
100base-T |
PoE: |
không |
tùy chọn đèn led: |
Với |
EMl Tabs: |
Với |
Kiểu lắp: |
Tht |
Loại hàn: |
Sóng |
Phạm vi nhiệt độ hoạt động: |
0°C đến +70°C |
Mã sản phẩm: |
LPJ46204AENL |
Loại kết nối: |
Giắc cắm đa cổng RJ45 |
Thương hiệu tương thích: |
Xung |
Số lượng cổng: |
1x4 |
Chốt cửa: |
Xuống |
Tốc độ dữ liệu: |
100base-T |
PoE: |
không |
tùy chọn đèn led: |
Với |
EMl Tabs: |
Với |
Kiểu lắp: |
Tht |
Loại hàn: |
Sóng |
Phạm vi nhiệt độ hoạt động: |
0°C đến +70°C |

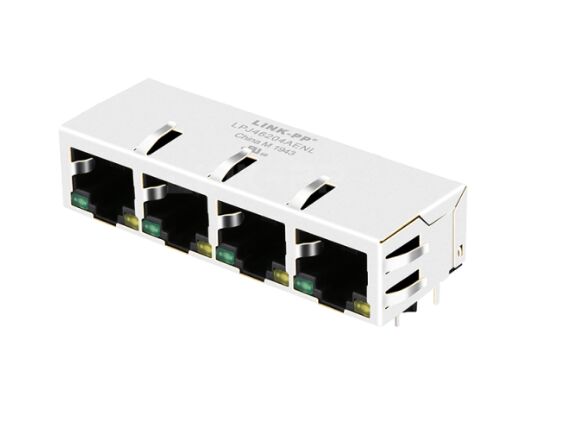

LPJ46204AENL is a 1x4 port through-hole RJ45 connector with integrated magnetics for 10/100 Base-TX Ethernet. Ideal for SOHO, LOM, hubs, and switches.
The LPJ46204AENL Magnetic RJ45 Connector is a compact, high-reliability 1x4 port Ethernet jack with integrated magnetics, designed for 10/100 Base-TX applications. Built for stable signal transmission, EMI protection, and easy PCB integration, it is a strong fit for networking equipment that needs dependable performance in a small footprint.
With a through-hole mounting design, 90° right-angle orientation, side entry PCB mount style, and green/yellow LED indicators, the LPJ46204AENL is engineered for practical deployment in SOHO devices, LAN-on-Motherboard (LOM) systems, hubs, and switches.
| Item | Specification |
|---|---|
| Part Number | LPJ46204AENL |
| Connector Type | Jack |
| Port Count | 1x4 Port |
| Ethernet Speed | 10/100 Base-TX |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| PCB Mount Style | Side Entry |
| Shielding | With EMI Tabs |
| LED | Green/Yellow |
| Latch | Down |
| Operating Temperature | 0°C to 70°C |
| Compliance | IEEE 802.3, RoHS, UL |
|
|
|
|
The LPJ46204AENL is built to support stable Ethernet performance across the relevant Fast Ethernet frequency range. Its electrical characteristics are suited for designs that require consistent signal integrity and dependable isolation.
Electrical Specification at 25°C
1. Turns Ratio (±2%):
2. Open Circuit Inductance (OCL): 350 µH Min @ 100 kHz, 0.1 V, 8 mA DC Bias
3. Insertion Loss: 1 to 100 MHz: -1.0 dB Max
4. Return Loss:
5. Crosstalk:
6. Common Mode Rejection:
7. Hipot: 1500V AC, 6S, 1mA
|
|
The LPJ46204AENL is designed for durability and manufacturing compatibility. Its materials and dimensions support dependable performance in production environments.
The LPJ46204AENL is a high-performance 1x4 port integrated RJ45 connector designed for 10/100 Base-TX applications. By integrating the magnetics directly into the jack, this component significantly reduces PCB footprint and EMI interference, making it an ideal choice for high-density networking hardware such as hubs, switches, and ADSL modems.
LPJ46204AENL is a magnetic RJ45 connector used for 10/100 Base-TX Ethernet connections in devices such as modems, hubs, switches, and LOM applications.
Yes. It is an RJ45 connector with integrated magnetics, which helps simplify Ethernet interface design.
It uses a through-hole mounting type with a 90° right-angle, side-entry PCB orientation.
The provided specification indicates LAN Ethernet (Non-PoE), so it is intended for non-PoE applications.
It operates from 0°C to 70°C.
